SNH025(Standard) Dimensions
Download Drawings
*Please note: Outer Diameter should be 99mm when circuits > 48
SNH025 Specifications(Standard)
-
Contact Material
Precious metal brush,Silver plated rings
-
Current Rating
2A signal per circuit
-
Number of Circuits
12
-
Operating Speed
600 rpm* continuous
-
Lead Wire
UL Teflon® Awg28,Awg22,Awg16,Awg10 (200 mm)
-
Voltage
600 VAC
-
Operating Temp.
-40°C to 80°C
-
Working Humidity
60%RH
-
Torque
Approx. ≤8.75 g·m (for reference )
-
Dielectric Strength
≥1000V@50Hz between each circuit
-
Insulation Resistance
1000MΩ@ 600VDC
-
Noise
Less than 10 mΩ @ 6 VDC, 50 mA, 5 rpm
-
Housing Material
Aluminum Alloy
-
Protection
IP54
*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature.
Options
-
Longer lead lengths available
-
Power and signal combinations
-
Rotor and stator lead exits
-
gold alloy brush,Gold plated rings
-
IP65,IP68 are optional
-
flange mounting is optional
SNH025(flange mounting-Optional)Dimensions
Download Drawings
Part Number Introduction
*Note: in below table,X- specifies current capacity of power circuits.
10, 15 and 20 amp available. See ordering instructions for details
Part.No
|
Power Circuits
(See Notes)
|
Signal Circuits
(2A)
|
Total Circuits
|
L--(mm)
|
SNH025-02X
|
2
|
---
|
2
|
32
|
SNH025-02s
|
---
|
2
|
2
|
32
|
|
SNH025-03X
|
3
|
---
|
3
|
36
|
SNH025-03s
|
---
|
3
|
3
|
36
|
|
SNH025-04X
|
4
|
---
|
4
|
40
|
SNH025-04s
|
---
|
4
|
4
|
40
|
SNH025-02X-02s
|
2
|
2
|
4
|
40
|
Part.No
|
Power Circuits
(See Notes)
|
Signal(2A)
|
Total Circuits
|
L--(mm)
|
SNH025-06X
|
6
|
---
|
6
|
48
|
SNH025-06s
|
---
|
6
|
6
|
48
|
SNH025-02X-04s
|
2
|
4
|
6
|
48
|
SNH025-04X-02s
|
4
|
2
|
6
|
48
|
|
SNH025-12X
|
12
|
---
|
12
|
72
|
SNH025-12s
|
---
|
12
|
12
|
72
|
SNH025-06X-06s
|
6
|
6
|
12
|
72
|
|
SNH025-18X
|
18
|
---
|
18
|
96
|
SNH025-18s
|
---
|
18
|
18
|
96
|
SNH025-06X-12s
|
6
|
12
|
18
|
96
|
SNH025-12X-06s
|
12
|
6
|
18
|
96
|
Part.No
|
Power Circuits
(See Notes)
|
Signal(2A)
|
Total Circuits
|
L--(mm)
|
SNH025-24X
|
24
|
---
|
24
|
120
|
SNH025-24s
|
---
|
24
|
24
|
120
|
SNH025-12X-12s
|
12
|
12
|
24
|
120
|
SNH025-06X-18s
|
6
|
18
|
24
|
120
|
|
SNH025-30X
|
30
|
---
|
30
|
144
|
SNH025-18X-12s
|
18
|
12
|
30
|
144
|
SNH025-12X-18s
|
12
|
18
|
30
|
144
|
SNH025-06X-24s
|
6
|
24
|
30
|
144
|
Part.No
|
Power Circuits
(See Notes)
|
Signal(2A)
|
Total Circuits
|
L--(mm)
|
SNH025-36X
|
36
|
---
|
36
|
168
|
SNH025-36s
|
---
|
36
|
36
|
168
|
SNH025-24X-12s
|
24
|
12
|
36
|
168
|
SNH025-12X-24s
|
12
|
24
|
36
|
168
|
|
SNH025-48s
|
---
|
48
|
48
|
216
|
SNH025-24X-24s
|
---
|
48
|
48
|
216
|
SNH025-12X-36s
|
---
|
48
|
48
|
216
|
SNH025-56s
|
---
|
56
|
56
|
248
|
*Note: X- specifies current capacity of power circuits. 10, 15 and 20 amp available.
See ordering instructions for details.
Max 96 channels available on request.
|
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. SenRing offer a full line of standard products for a wide variety of applications, as well as complete specialized rotating solution & rotate joint design & build services.

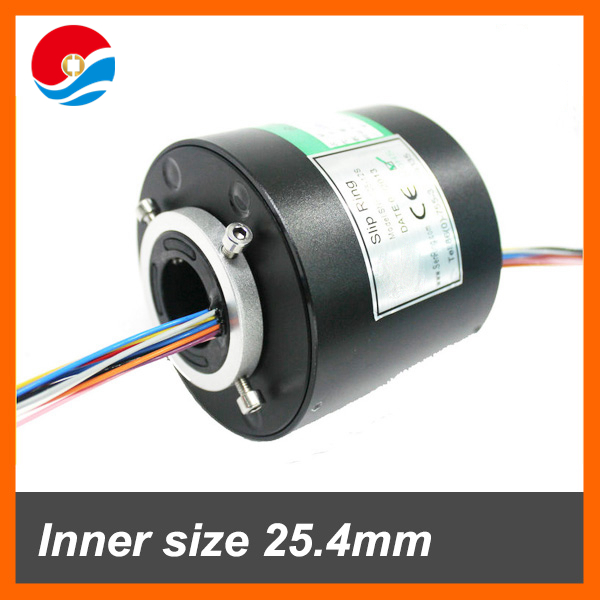

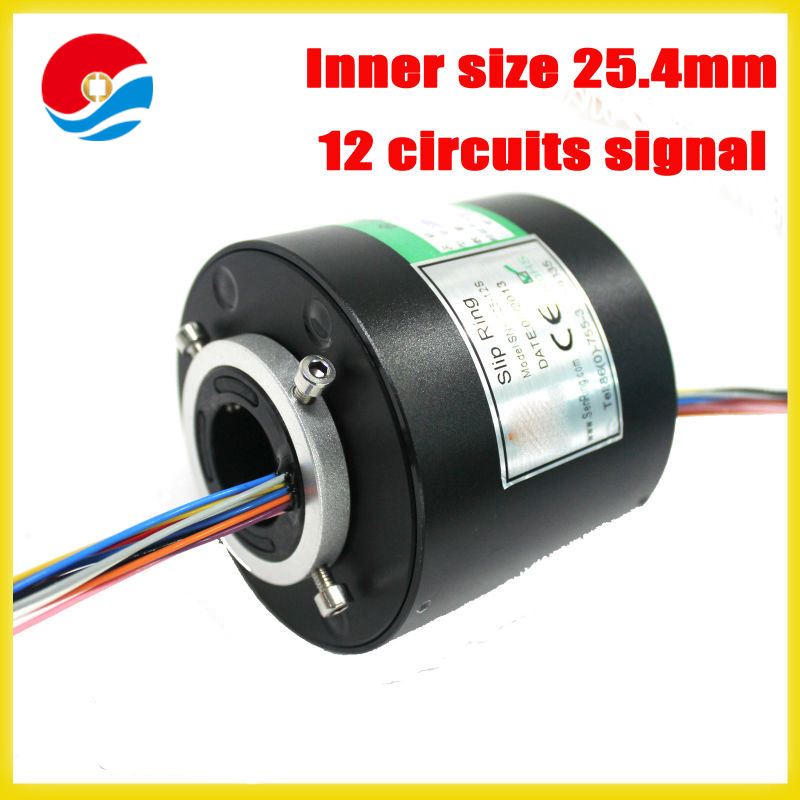

SNH025 can be used in any electromechanical system that requires unrestrained, intermittent, or continuous rotation while transferring power or data.The 25.4mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount and a compact 86mm outside diameter for restricted space applications.
The SNH025 uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris.The precious metal contacts are maintenance free and provide long life.
Features
-
25.4mm(1 inch) through-bore size.
-
Compact 86mm(99mm when circuits>48) outside diameter; smaller OD, customized on request
-
2,3,4, 6, 12, 18, 24, 30, 36, 48, 56 circuits are standard, others,need to be customized
-
Signals, 5Amp, 10Amp, 20Amp current version; >24Amp, customized on request
-
Speeds up to 600 rpm continuous, >600rpm, need to be customized
-
Steel bearings and machined shaft and housing for harsh environments
-
Collar mounting is standard; flange mounting is optional
-
Various lead exits are available
-
Silver plated rings are standard. Gold plated, optional.
-
precious metal brush are standard. gold alloy brush, optional.
-
Awg28,Awg22,Awg16,Awg10, 200mm lead wire are standard, >200mm is optional.
-
Continuous 360° rotation of power or data signals
-
Protection grade IP54 is standard, IP65,IP68, optional
-
Aluminum alloy housing material
Benefits
-
Transfers control and data signals
-
Fiber brush technology provides maintenance-free operation (no lubrication required)
-
Modular design meets special requirements through off-the-shelf manufacturing techniques
-
Customized configurations for your application
-
Quick shippments
Lead Wire Color Code
Circuit No.
|
1
|
2
|
3
|
4
|
5
|
5
|
Color
|
BLK
|
RED
|
YEL
|
GRN
|
BLU
|
WIT
|
Circuit No.
|
7
|
8
|
9
|
10
|
11
|
12
|
Color
|
BRN
|
ORG
|
GRAY
|
CLAR
|
WIT-RED
|
WIT-RED
|
12 circuits/per group, groups with tags
|
Type Application
Industrial machinery
|
Filling equipment
|
Exhibit / display equipment
|
Medical equipment
|
machining centerse
|
rotary index tables
|
Mechanical arm
|
Surgery lamp
|
heavy equipment turrets or cable reels
|
Revolving door
|
Packaging machine
|
Coiling machine
|
test equipment
|
packaging machines
|
|
