SNH012

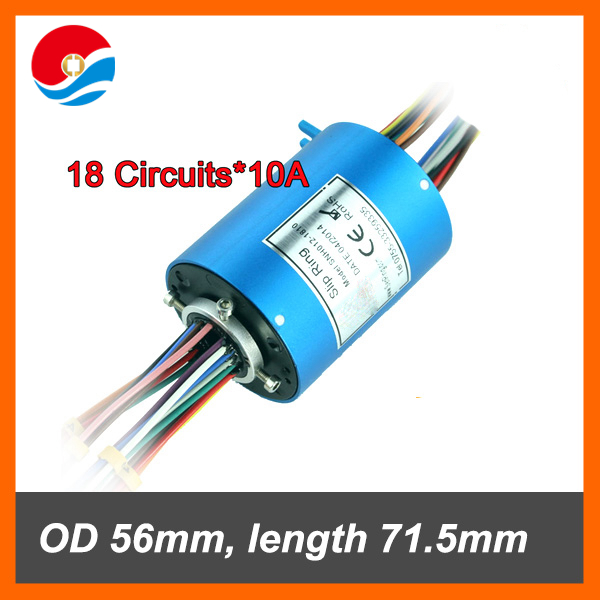

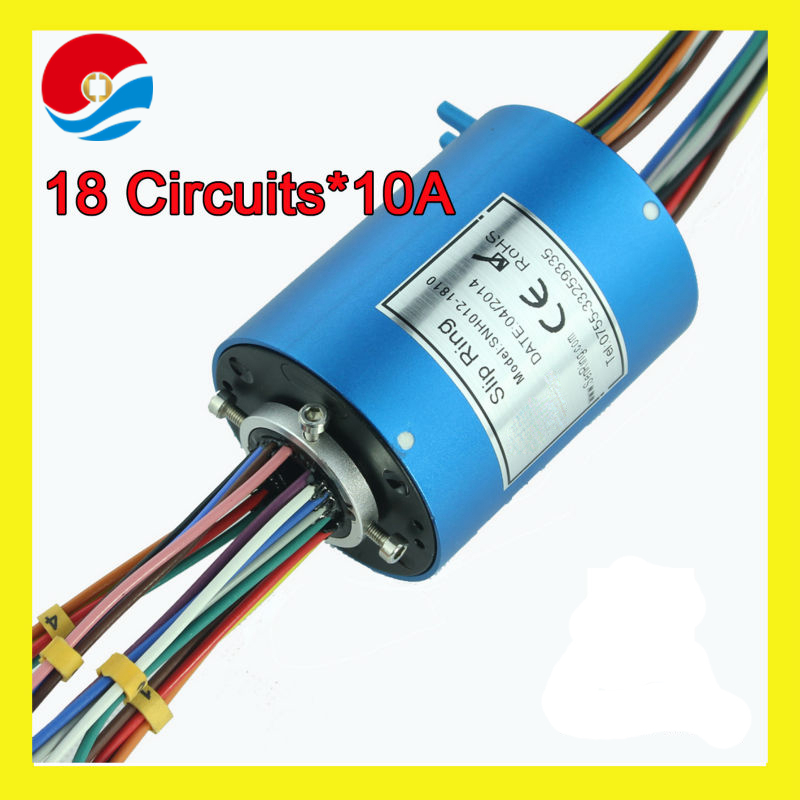

18 wires 10A rotary joint connector with bore size 12.7mm through hole slip ring

Min.Order Quantity:1 Piece/Pieces
Supply Ability:50000 Piece/Pieces per Month
Port:shenzhen
Payment Terms:L/C,T/T,Western Union,paypal
Product description: 18 wires 10A rotary joint connector with bore size 12.7mm through hole slip ring
INQUIRY

Quick Details

Place of Origin: Guangdong, China (Mainland)
Model Number: SNH012-1810
Hole Size(mm): 12.7mm
Outer Dia(mm): 56mm
Circuits: 18
Volt AC/DC(V): 600Vac/240Vdc
Current(A): 10A
Speed(rpm): 600RPM

Packaging & Delivery

Packaging Details:	Standard Export carton Package
Delivery Detail:	Sample 2 days / Order depends on quanlity

The SNH012, with 12.7mm through bore size and compact 56mm outside diameter, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.

SNH012(Standard) Dimensions
